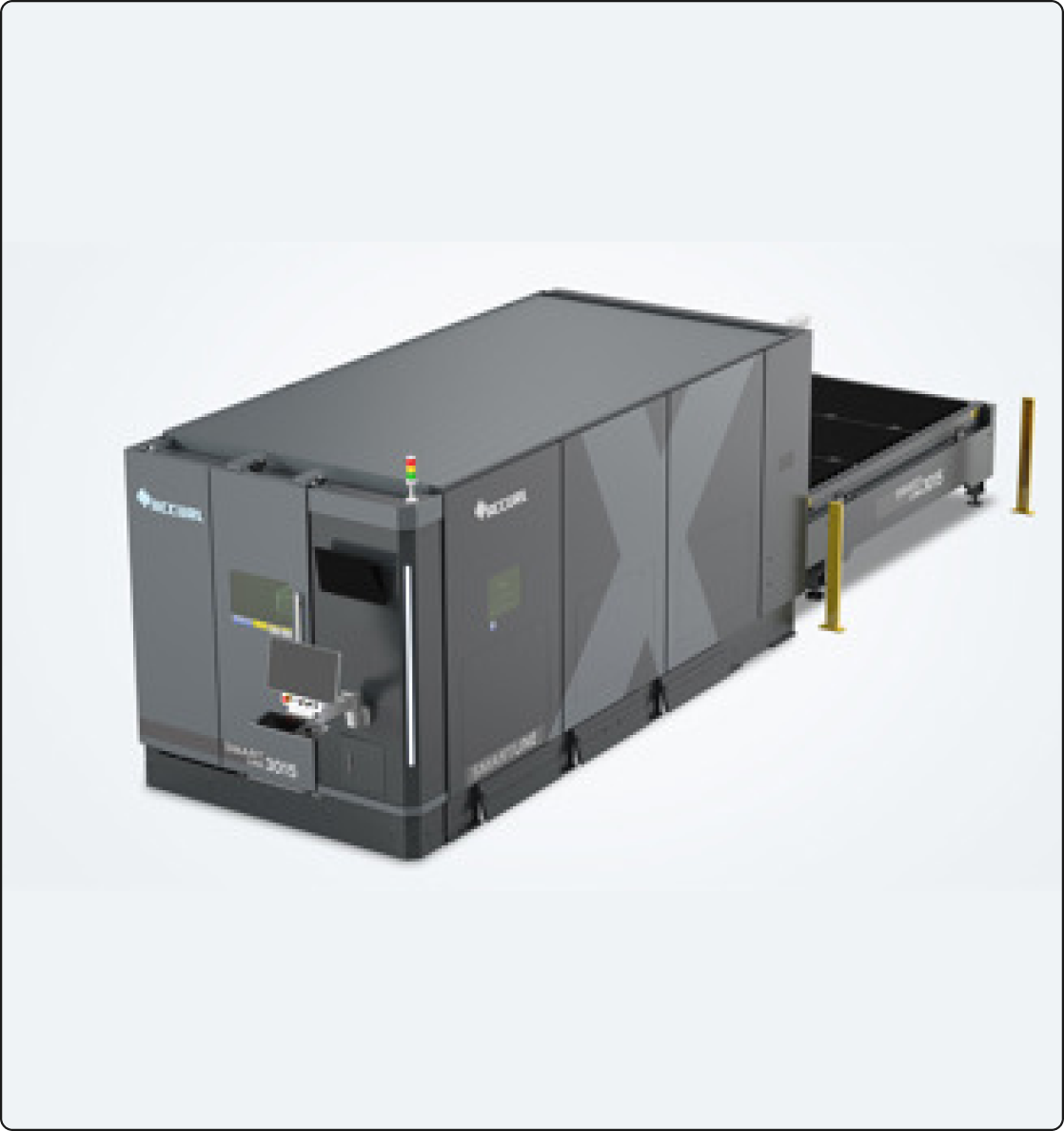

The SmartLINE X is the powerful choice for companies that require precise and economical 2D laser cutting with consistently high quality. With an acceleration of 2G and a traverse speed of up to 140,000 mm/min, the series combines dynamic motion profiles with stable process control – ideal for efficient cutting processes in daily operation. Another significant advantage of the series is its attractive price positioning. The SmartLINE X enables an economical entry into professional laser processing – without compromising on quality, stability, or cutting performance.
The SmartLINE X is available in working areas ranging from 3,000 x 1,500 mm to 6,000 x 2,500 mm and can be equipped with powerful fiber laser sources up to 20 kW. Reliable performance is ensured by consistently solid equipment with proven brand-name components. The robust shuttle table design enables efficient loading and unloading processes and contributes to short non-productive times.
.svg)
.svg)
The SmartLINE X is the perfect entry into high-quality, efficient 2D laser cutting – and it comes at a very attractive price despite its top performance:
With acceleration of up to 2G and a traverse speed of the gantry of up to 140,000 mm/min!
.svg)
Perfect for processing thin and thicker materials!
The shuttle table of the SmartLINE X takes just 15 seconds to move in and out and can easily withstand even the highest weight loads: with up to 550 kg per m², the structure can be loaded without any problems.
.png)

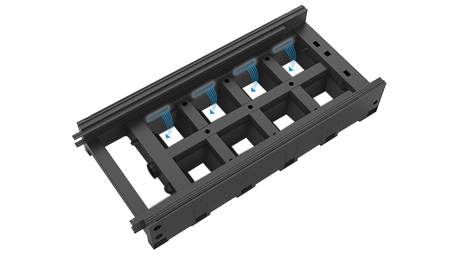

The SmartLINE X shuttle table takes just 15 seconds to extend or retract and can easily withstand even the heaviest loads: the structure can be loaded depending on the design with up to 450 kg per m² without any problems.
The following table sizes are available: 3,000 x 1,500 mm, 4,000 x 2,000 mm, and 6,000 x 2,500 mm. The table construction of the SmartLINE X combines maximum stability, modular flexibility, and intelligent adaptability — for maximum precision even under extreme conditions:
Dynamic and static simulations during the design of the table guarantee long-term operational safety, even under maximum loads, e.g., at maximum acceleration of the cutting gantry.
The welded machine bed is stress-relieved and vibration-aged. This ensures that the structure remains dimensionally stable even at maximum speed.
Segmented construction allows for flexible bed lengths, easy cutting grid replacement, and reduced vibrations — for consistently high cutting quality even at higher speeds, resulting in high productivity.
The adaptive structure of the adjustable feet developed by ACCURL compensates for foundation deviations and ensures perfect support for the table construction. The result: less vibration and even greater cutting precision.
Graphite plates protect against extreme laser temperatures. Thanks to their high thermal conductivity and non-absorbent properties, they prevent thermal deformation and damage. The result: stable, durable components and reliable precision.
Cleanliness and precision even at top speed. Ultra-fast cuts release a lot of smoke and dust in a short time. Intelligent follow-along extraction solves this problem: a zoned system follows the cutting head in real time and increases extraction performance by more than 40% compared to standard solutions.
From cutting and welding to stress-relief annealing, precision machining, and final inspection – every step in the manufacturing process is seamlessly monitored.
Ultra-high-speed laser cutting systems require extremely fast movements. However, if the cutting gantry is not sufficiently rigid, vibrations occur that can significantly impair cutting precision. ACCURL's ultra-light aluminium crossbeam effectively remedies this problem by combining high dynamics with the necessary stability.
The crossbeam is made of T6061 aerospace aluminium and was optimized using finite element analysis in SolidWorks and then manufactured using an extrusion casting process. The result is a particularly lightweight yet highly rigid structure that enables accelerations of up to 3G without compromising stability.
Intelligent lubrication system – for lasting precision
In complex environments with high speeds and long distances, the system prevents friction and heat-related loss of precision.
Time- and quantity-based dosing, independent of slide position – all points receive exactly the right amount.
Automatic lubrication, low oil level warning, and dry run protection. No risk of forgotten manual lubrication as with conventional systems.
The new auto nozzle changer system from ACCURL revolutionizes nozzle changing in laser cutting systems. Instead of time-consuming manual changing and calibration, the intelligent system does everything automatically—quickly, precisely, and reliably.
The bottom line: More throughput, less effort — for companies that work with lots of material thicknesses and don't want to waste time.
Your advantages:
Significant reduction in downtime.
Processing of different material thicknesses in a single pass — without operator intervention.
Fully automated processes for maximum utilization and productivity.
The system owes its high reliability and process safety to being equipped with extremely high-quality brand-name components throughout. Here is a brief excerpt:
For the SmartLINE X, we rely on Raycus sources that have been specially developed for the European market: the high-performance CW series. With their dual safety circuit and full CE and PLD compliance, they meet the highest standards for operational safety.The sources are available for the SmartLINE X with a power output of 3 to 20 kW and guarantee first-class cutting quality, stability, and efficiency. Integrated protection mechanisms against back reflections and real-time monitoring ensure maximum reliability in continuous operation.
The SmartLINE X guarantees safe and fully compliant operation in accordance with current CE directives. The fully enclosed cutting area, CE-compliant protective windows, and safety locks on the access points to the cutting area from quality manufacturer PILZ effectively protect operating personnel from laser radiation and fumes, for example.
With its robust safety mechanisms, the SmartLINE X minimizes the risk of eye injuries, fire hazards, and collisions, ensuring reliable and safe operation.
The ACCURL LasGAM system powered by HOERBIGER is a game changer for laser cutting: Precise gas mixing efficiently removes molten residue, enabling fast, clean cuts on thick materials with high laser power. Less burr means less rework—saving time and money.
Advantages at a glance:
Thanks to its premium components, the SmartLINE X achieves outstanding cutting quality on a wide variety of components. Special sensors integrated into the cutting head ensure high quality and process reliability, even in multi-shift operation.
The laser system can be used to cut mild steel, stainless steel, aluminum, brass, and copper, among other materials. Depending on the laser source and material, thicknesses of up to 50 mm can be processed.
With a control system and extensive remote maintenance modules, we offer the best basis for fast and competent help via remote dial-in.
Almost all electronic components can be diagnosed and evaluated. This means that in more than 90 percent of all cases, machine downtimes can be eliminated quickly and easily without the need for a service technician on site.
The TWINCUT S80 CNC control system takes over the complete control of all cutting components and the associated peripherals. It is equipped as standard with a user-friendly HMI (Human Machine Interface), which can be conveniently controlled via a 21.5" touchscreen or an ergonomic hand-held operating device.
The clear graphical user interface enables intuitive operation and quick familiarization for users. The control system is based on a robust industrial PC, which is integrated together with all other control components in a separate control cabinet. The power and signal lines are routed in a secure cable duct.
To ensure optimum cutting quality, the control system features fast automatic height control for a constant distance to the workpiece and CNC-controlled compensation mechanisms for precise laser focus positioning.
The following functions are also integrated as standard:
To enable you to concentrate fully on your production, the following software solutions help you intuitively convert drawings and cutting plans into finished components. Which of the listed solutions can be used depends on the individual configuration of your cutting system's control system – we are happy to advise you personally! In principle, solutions from alternative manufacturers, such as Lantek or Libellula, can of course also be used.
CypNest is a powerful nesting software developed specifically for laser cutting systems, enabling efficient and material-saving nesting of cut parts.
