Buy a CNC press brake and achieve high precision and efficiency when bending sheet metal! Bending technology from ACCURL Europe offers maximum precision and process reliability, is equipped with high-quality components throughout and can be almost completely automated. The hydraulic press brakes are characterized by state-of-the-art control technology, ease of operation and numerous configurations.
.png)
The SMART is a solid entry-level solution with a wide range of options – with up to 6 meters of bending length and 600 tons of press force.
The 100% electric press brake from the eB ULTRA series is highly efficient, extremely precise and incomparably fast.
The EuroMaster series is economical to purchase and works precisely and reliably. It is extremely flexible in terms of pressing force, working range and degree of automation.
The GeniusPlus series can be customized exactly to the user's needs: from compact bending cells to fully automated press brakes with a bending length of up to 9 m and a pressing force of 1,250 tons.
Every ACCURL laser cutting machine is built around proven safety architecture and intelligent control systems formaximum uptime and operator confidence.
The press brakes from ACCURL are equipped with state-of-the-art CNC controls from Delem as standard: cutting-edge technologies that allow users to get the most out of their press brake and are easy and intuitive to operate. Alternatively, the machine can also be equipped with control systems from ESA or Cybelec on customer request.
With regard to programming a press brake from ACCURL, we recommend the Libellula.BEND software: The solution makes it possible to check created production programs using simulations – including the detection of collision risks in relation to tools or machine parts, for example. The DXF files for nesting on a cutting system can be automatically generated from the production program for cutting the sheets to be bent. And, of course, it is also possible to use programming software from alternative quality providers.
The CNC-controlled backgauge of the press brake guarantees optimum positioning of the part to be bent. When purchasing the standard version of the press brake, it is equipped with at least two axes – or four, five or six axes according to the series or on request. The backgauges can be equipped with pneumatically retractable sheet supports to prevent large thin sheets from sagging between the bending line and the backgauge. Double-guided backgauges have a stabilizing effect and promote precision during the bending process.
Press brakes from ACCURL are already equipped with Promecam quality clamping systems as standard. Alternatively, the manufacturer's bending systems can also be equipped with products from WILA – manual as well as pneumatic or hydraulic solutions are also available for the upper and lower tool clamping.
Every press brake from ACCURL is already equipped with support consoles as standard. Depending on the equipment option, the front supports also have a parking space outside the bending line. The manufacturer also offers CNC-controlled bending aids for handling large sheets.
Maximum safety with minimum loss of time: A safety laser protects the operator of the press brake from the risk of crushing between the upper and lower tool. The traversing speed is controlled dynamically; the machine only moves at a reduced speed within the danger zone, which saves a considerable amount of time.

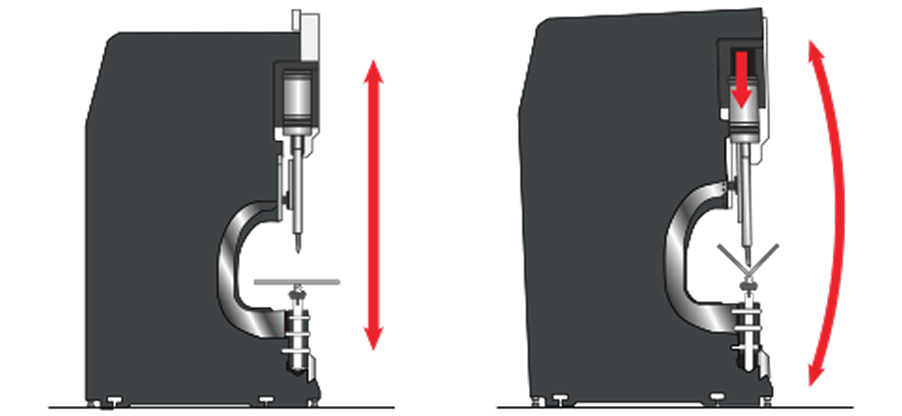

During the bending process, stresses and deformations occur due to the sometimes immense forces acting on the machine structure. One of the consequences of this is that the upper structure (upper beam) of the press is further away from the lower structure (lower beam) during the bending process than would be the case without the described deformation effect. As a result, the tool does not plunge deep enough into the die to achieve exactly the desired angular result.
ACCURL® uses the most advanced 3D CAD modeling techniques, including analysis tools such as computer-aided engineering (CAE) software programs, right from the design stage of the press brakes. In this way, stresses and deformations can be virtually simulated and reduced to a minimum in terms of design (see graphics). Press brakes from ACCURL are also characterized by a particularly high level of process reliability during operation: Only the highest quality components from well-known brand manufacturers such as Siemens, Heidenhain or HAWE Hydraulik are used.

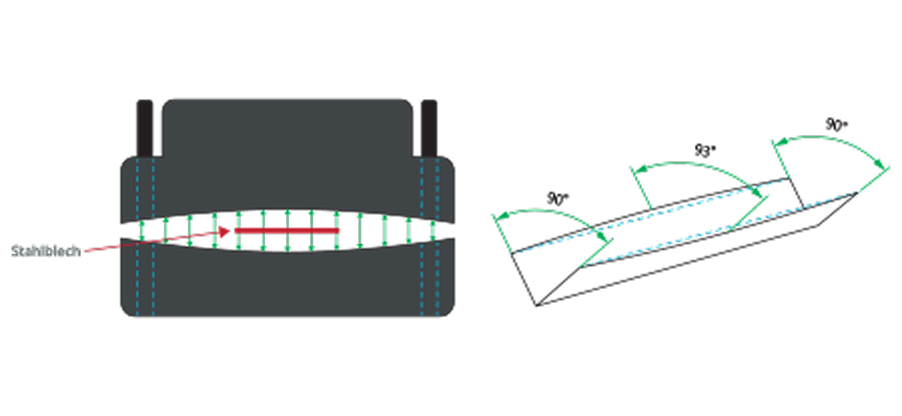

One of the unavoidable phenomena in press brakes is the deformation of the structure. In particular, the upper beam tends to bend in the middle with medium and thicker material thicknesses, which leads to a greater distance between the punch and die in this area. Without compensation for this effect, the bending result in the middle does not correspond to the desired angular result.
.png)
The ultra-precise drive systems from ACCURL® in combination with the CNC-controlled crowning systems from ACCURL® compensate for the deformation of the structure during the bending process and ensure that the desired bending angle is consistently achieved over the entire length of the press brake. These precision systems are already installed as standard on the EuroMaster and eB ULTRA series.
Exact bending of sheet metal is essential for precision sheet metal production, regardless of the bending strength or thickness of the material to be processed.

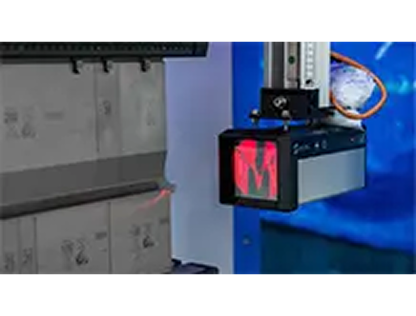

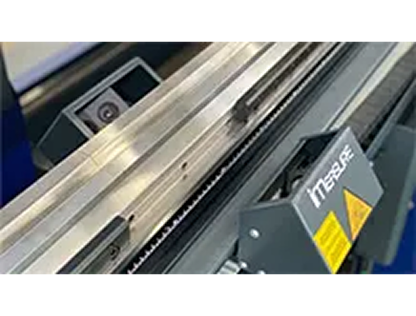

ACCURL iMeasure® is a fully automatic, laser-supported bending angle measurement and correction system for CNC press brakes. iMeasure enables the exact determination of the bending angle with extremely high accuracy. Alternatively, an angle measuring system integrated into the safety system is available, particularly for systems with shorter bending lengths. IRIS Plus is extremely economical to purchase and ensures real-time angle correction.

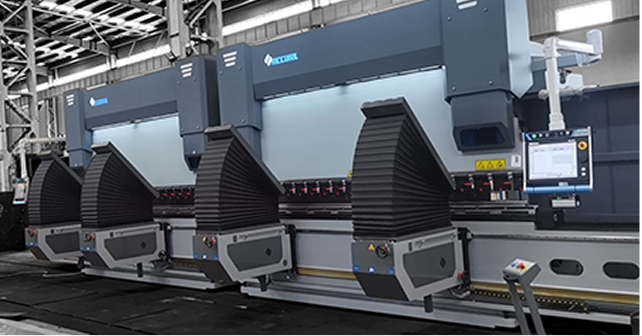

Press brakes are used in all sectors and industries of metal processing where materials such as steel, stainless steel and aluminum are bent. From small bending cells for locksmiths and car workshops to fully automated bending production lines for the automotive or shipbuilding industries, for example. For industries in which particularly long and large components need to be bent, such as light poles, we recommend purchasing a press brake as a tandem and tridem solution.

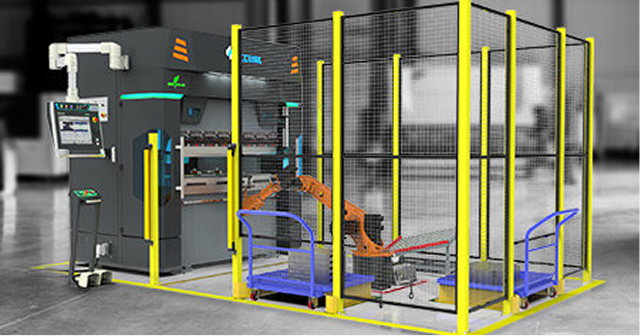

Increased production efficiency
Time savings through automatic tool change
Elimination of time-consuming manual parts handling
Bending cells individually designed to meet requirements
Error-free processing of large series and changing order situations up to batch size 1
Lower production costs
Design flexibility in terms of shape, size and quantities
Reliable and precise processes
Faster speeds compared to one large single machine
Individual presses can also be used independently of each other for smaller bending jobs
Variability in terms of length and press force, depending on requirements
Uncomplicated programming and control
As easy to operate as one single machine
Before the sheets are bent, they are usually cut to size. A combination of laser cutting system and press brake in the company often forms a perfect duo. Laser technology scores particularly well in the thin sheet metal sector, achieving high levels of accuracy at high cutting speeds. Precise and accurate cutting makes the subsequent bending process easier and results in higher quality end products. In addition, the combination of both machines means that sheets can be processed in the press brake directly after laser cutting. This saves valuable time in the production process. The synergy of press brake and laser machine in one company therefore leads to both time and cost savings, making it the ideal combination in sheet metal processing.
Laser cutting machines
Our application engineers help you select the right machine, tooling, and CNC configuration for your specific requirements.
