SMART Cube X | Laser cutting on compact space

The SMART Cube X fiber laser cutting system is the ideal solution for compact laser cutting. It combines efficiency with minimal space requirements and enables the production of high-precision parts. The series is available in working areas ranging from 1,000 x 2,000 to 1,500 x 3,000 mm and can be equipped with laser sources with a power output of up to 12 kW.

The fiber laser cutting system also stands out thanks to its attractive pricing and low maintenance and operating costs. It owes its high reliability and process safety to its equipment, which consists entirely of extremely high-quality brand-name components.

The SMART Cube X is optimized for use with IndustryFusion, a cross-manufacturer open-source networking solution for smart factories and smart products. This means that the laser cutting system is already perfectly equipped for the manufacturing of the future!

Plates

2D Cutting

Marking

Next Generation Efficiency

SMART Cube X: The compact solution for 2D laser cutting

The SMART Cube X is a compact and efficient fiber laser cutting system. The high-precision 2D cutting system with a manually extendable cutting table for simple and uncomplicated loading and unloading is available in various configurations: 

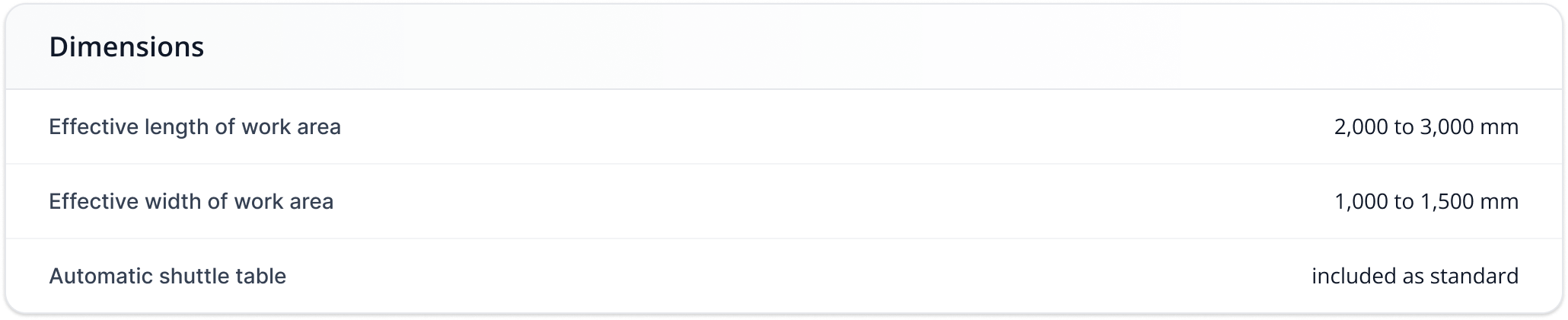

WORK AREAS

Work areas from 1,000 x 2,000 up to 1,500 x 3,000 mm possible

efficient processing

Laser sources with a power of 2 to 12 kW enable fast and efficient processing

‍

Features

Highly dynamic machine gantry and solid, durable frame construction

The steel frame construction is annealed at over 600°C to relieve stresses. This prevents the frame from warping, even under heavy use over many years.

A weight-optimized and highly rigid construction, as well as a low center of gravity, enable high accelerations.

Powerful laser sources with up to 12 kW output for maximum productivity

More laser, more beam force, more power: laser sources with an output of 2 to 12 kW are available for the SMART Cube X. Users can therefore generate even faster cutting results or cut thicker materials; they also benefit from maximum productivity, efficiency and low unit costs.

Laser sources from the renowned manufacturers IPG Photonics and Raycus are used to provide the necessary power. Both suppliers stand for maximum process reliability and innovative products, have a wealth of experience and a strong R&D base.

High-quality components from renowned brand manufacturers

The system owes its high reliability and process safety to being equipped with extremely high-quality brand-name components throughout. Here is a brief excerpt:

Cutting head: THERMACUT Ex-Trabeam® (Germany) / BOCHU BLT (China)
Control system: MicroStep Europa MSE SmartControl (Germany) / TWINCUT S80 (China)
Servo drives: Eckelmann (Germany) / Yaskawa (Japan)
Gears & racks: WITTENSTEIN alpha (Germany)
Linear guides: BOSCH Rexroth (Germany)
Gas valve: HOERBIGER LasGARCompact (Germany)

‍

Excellent cutting quality with different materials

The SMART Cube X impresses with high-quality components and delivers precise cutting results on a wide range of components. The sensor technology integrated in the cutting head ensures stable and consistently high process quality, even in continuous multi-shift operation.

The laser system is suitable for cutting mild steel, stainless steel, aluminum, brass, and copper, among other materials. Depending on the laser source used and the material, material thicknesses of up to 25 mm can be achieved.

High efficiency in spite of strong performance

Highly attractive pricing with comparatively manageable investment and operating costs enables a fast return on investment
2/3 less power consumption with higher cutting speed at the same time (compared to CO₂ lasers of the same power)
Complete system is almost maintenance-free
No laser gases required
Immediately ready for operation after switching on the machine
Fast commissioning thanks to compact and modular design (plug & produce)

Remote Diagnostics

With a control system and extensive remote maintenance modules, we offer the best basis for fast and competent help via remote dial-in.

Almost all electronic components can be diagnosed and evaluated. This means that in more than 90 percent of all cases, machine downtimes can be eliminated quickly and easily without the need for a service technician on site.

Controls

Two powerful control options are available for the series: MSE SmartControl, developed with Eckelmann, offers an intuitive HMI, fast height control, extensive assistance functions, and is fully IndustryFusion-ready. Alternatively, the TWINCUT S80 from ACCURL enables ultra-dynamic processes with high-speed communication, automatic parameter adaptation, integrated CAD/CAM nesting software, and comprehensive monitoring for maximum cutting performance.

MSE SmartControl machine control

High-end: Industry 4.0 control with intuitive operating logic

MicroStep Europa has developed the MSE SmartControl control system in collaboration with German control specialist Eckelmann. The machine control system, manufactured for use in all environmental conditions, is used to control the cutting components and cutting peripherals. The MSE SmartControl has a user-friendly HMI (Human Machine Interface), which can be conveniently operated via two 21.5" TFT multi-touch displays and an additional handheld device. A clear and easy-to-use graphical user interface allows for quick familiarization. The machine control system includes an industrial-grade PC. The control components are located in a control cabinet. The cables are routed in a secure cable duct. In addition to fast height control for a constant distance to the workpiece, the control system also offers CNC-controlled compensation mechanisms for optimum laser focus position. Additional functions such as sheet metal position detection, cut compensation, and wear part monitoring are integrated into the control system as standard.

The MSE SmartControl is also optimized for use with IndustryFusion, a cross-manufacturer open-source networking solution for smart factories and smart products.

Further information: industry-fusion.com

‍

TWINCUT S80 machine control

Process reliability, efficiency, and repeatability

The TWINCUT S80 CNC control system takes over the complete control of all cutting components and the associated peripherals. It is equipped as standard with a user-friendly HMI (Human Machine Interface), which can be conveniently controlled via a 21.5" touchscreen or an ergonomic hand-held operating device.

The clear graphical user interface enables intuitive operation and quick familiarization for users. The control system is based on a robust industrial PC, which is integrated together with all other control components in a separate control cabinet. The power and signal lines are routed in a secure cable duct.

To ensure optimum cutting quality, the control system features fast automatic height control for a constant distance to the workpiece and CNC-controlled compensation mechanisms for precise laser focus positioning.

The following functions are also integrated as standard:

Sheet metal layer detection for automatic alignment of the cutting process
Smart Piercing for optimized piercing processes
Smart Laser Off to reduce unproductive times
Smooth Microjoin for improved component quality
Auto Recut when incomplete cuts are detected
Integrated CAD/CAM system for simple and efficient programming

‍

Software

Software for your laser cutting system

To enable you to concentrate fully on your production, the following software solutions help you intuitively convert drawings and cutting plans into finished components. Which of the listed solutions can be used depends on the individual configuration of your cutting system's control system – we are happy to advise you personally! In principle, solutions from alternative manufacturers, such as Lantek or Libellula, can of course also be used.

CypNest

CypNest is a powerful nesting software developed specifically for laser cutting systems, enabling efficient and material-saving nesting of cut parts.

Media

Please note: The following gallery shows a video and images of the previous SMART Cube series — a highly successful series worldwide that has now been succeeded by the SMART Cube X. Images of the new SMART Cube X will follow shortly.
