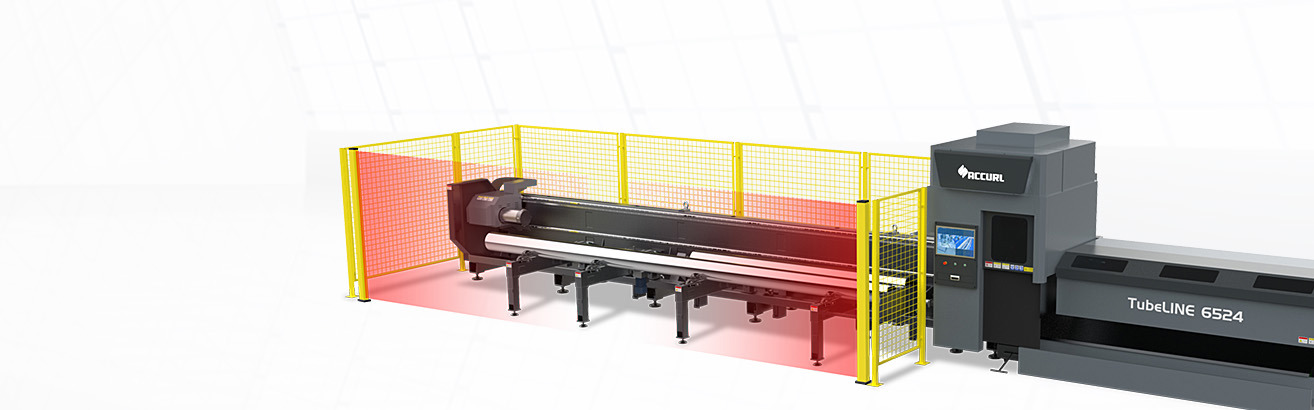

The TubeLINE A | Professional introduction to 2D laser cutting

The TubeLINE A offers the ideal entry into modern 2D processing of pipes, profiles and beams. The fiber laser cutting system enables the precise processing of pipes up to 6 meters in length and 360 mm in diameter as well as profile cutting up to a length of 6 meters and an edge length of up to 360 mm. Optionally, this series can be equipped with a semi-automatic loading system, and the unloading area can also be extended as required to support efficient material handling.



The highly dynamic machine is perfectly suited for the production of high-precision parts at high cutting speeds. Square profiles, round profiles, elliptical profiles, flat profiles and triangular geometries as well as I-beams and other material shapes can be clamped and processed easily. The fiber laser system with laser sources with an output of up to 6 kW has amazingly low maintenance and operating costs.

Pipe & Profile processingBeam processing2D cuttingMarkingMaterial handling

Features

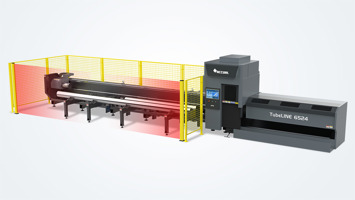

A highly efficient solution that guarantees maximum productivity

A highly efficient solution that guarantees maximum productivity

The TubeLINE A is a compact and efficient solution for pipe, profile and beam cutting with numerous advanced technologies...

Pipe, square profile and beam processing with a high degree of automation

Pipe, square profile and beam processing with a high degree of automation

Cutting of pipes (up to 360 mm Ø and 6 meters long) and square profiles (up to 360 x 360 mm edge length and 6 meters total...

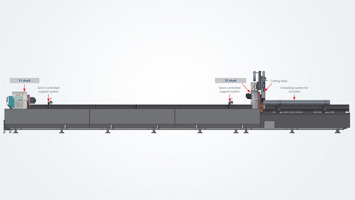

Robust mechanical engineering for excellent process reliability

Robust mechanical engineering for excellent process reliability

Technology partner ACCURL has developed robust, pneumatically operated chucks for the TubeLINE A series. These can precisely...

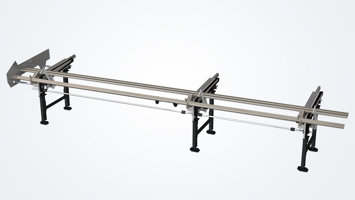

Semi-automatic loading system

Semi-automatic loading system

The TubeLINE A series can be optionally equipped with the semi automatic SAT loading system. In this setup, pipes...

High efficiency in spite of strong performance

High efficiency in spite of strong performance

Highly attractive pricing with comparatively manageable investment and operating costs enables a fast return on investment ...

Technical specifications

Laser power

2 to 6 kW*

Minimum pipe diameter

8 mm*

Maximum pipe diameter

360 mm*
Minimum dimension square profile 8 x 8 mm*
Maximum dimension square profile 360 x 360 mm*
Positioning accuracy ± 0.05 mm/m
Positioning repeatability ± 0.03 mm/m
Maximum weight per pipe/profile 800 kg*
Maximum material length loading 6000 mm*

*depending on the specific configuration of the series



Software

The TubePro® software from Bochu is characterized by the following features, among others:

  • Intuitive step-by-step support for machine operators
  • CAD/CAM software for nesting is integrated
  • Fast height adjustment for very high and consistent cutting quality
  • Integrated monitoring of peripheral devices such as laser sources and sensors

Control

Bochu FSCUT5000® machine control

Operation via a dual panel

Thanks to high-quality components and a clever machine design, the TubeLINE simplifies many processes in laser tube cutting. The FSCUT5000® from Bochu – a highly precise, ultra-fast and extremely innovative EtherCAT CNC control system – ensures the best performance of the overall system. It was specially developed for fiber laser tube cutting machines. The highly agile system enables high-performance control of several chucks and a 3D bevel unit for the realization of weld seam preparations.



In combination with the user-friendly and highly functional TubePro® software, users work with one of the most advanced and user-friendly solutions for tube and profile processing.
