The SMART Cube | Laser cutting on compact space

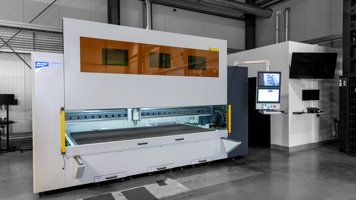

The SMART Cube fiber laser cutting system is the ideal solution for compact laser cutting. It combines efficiency with minimal space requirements and enables the production of high-precision parts. The series is available in working areas from 1,000 x 2,000 to 1,500 x 3,000 mm and can be equipped with laser sources up to 12 kW.

The fiber laser cutting system is also characterized by attractive pricing and low maintenance and operating costs. It owes its high reliability and process safety to being equipped with extremely high-quality brand components throughout.

2D cuttingMarkingSheet processing

Features

SMART Cube: The compact solution for 2D laser cutting

SMART Cube: The compact solution for 2D laser cutting

The SMART Cube is a compact and efficient fiber laser cutting system.

Highly dynamic machine gantry and solid, durable frame construction

Highly dynamic machine gantry and solid, durable frame construction

The steel frame construction is annealed at over 600°C to relieve stresses. This prevents the frame from warping, even...

Powerful laser sources with up to 12 kW output for maximum productivity

Powerful laser sources with up to 12 kW output for maximum productivity

More laser, more beam force, more power: laser sources with an output of 2 to 12 kW are available for the SMART Cube.

High efficiency in spite of strong performance

High efficiency in spite of strong performance

Highly attractive pricing with comparatively manageable investment and operating costs enables a fast return on investment ...

Excellent cutting quality with different materials

Excellent cutting quality with different materials

The SMART Cube achieves outstanding cutting quality on a wide range of workpieces thanks to the best components. Thanks to...

Remote Diagnostics

Remote Diagnostics

With a control system and extensive remote maintenance modules, we offer the best basis for fast and competent help via remote...

Technical specifications

Dimensions

Effective length of work area

2,000 to 3,000 mm

Effective width of work area

1,000 to 1,500 mm

Automatic shuttle table

included as standard



Tools

Possible number of tools 1
Possible cutting processes fiber laser
Maximum material thickness according to laser source up to maximally 12 kW


Precision

Traverse speed up to 145,000 mm/min
Positioning accuracy Pa ± 0.03 mm according to VDI/DGQ 3441
Repeatability Ps ± 0.05 mm according to VDI/DGQ 3441
X, Y axis linear guides, driven on both sides and helical toothed racks
Z axis rack
Gantry type

structural steel gantry



Control & software

Control

FS-8000 Laser Cutting CNC Controller

Main control panel 17” high resolution colour TFT


All specifications subject to change



Software

ACCURL laser machines can be operated with CAD/CAM software from all quality providers. Among other things, ACCURL works closely with Libellula.


CAD/CAM Nesting Software | Libellula.CUT

  • Thanks to the integrated CAD and the exclusive one-click technology, Libellula.CUT creates or imports the geometric details of any other drawing platform in an instant, automatically optimizing the profiles and arranging them optimally for subsequent processing.

    A formula for success:

    + automation + integration + efficiency + productivity – learning times and programming = Libellula.CUT

    The best of Libellula's technological research in a powerful and intelligent application that reduces processing time.

    In Libellula.CUT, software engineers and analysts have concentrated the best of Libellula's technological expertise in the field of sheet cutting:

  • Fast and intuitive learning
  • Complete automation in every step of the programming process
  • Possibility to manage all the cutting machines with the same system

Control

ACCURL FS-8000 Laser Cutting CNC Controller



ACCURL FS-8000 Laser Cutting CNC Controller

FSCUT8000 is an EtherCAT bus system developed for fiber lasers. It is characterized by out-of-the-box service, easy installation and setup, and comprehensive solution capabilities. It supports customization, automation, and informatization solutions and is the leading EtherCAT laser cutting control system on the market.



Advantage:

  • 17” high resolution colour TFT
  • High-speed EtherCAT communication
  • TwinCAT: software for engineering and runtime
  • Highly dynamic servo drive technology
  • Integrated retention brake control
  • Automatic adaptation of parameters
  • Adjustable error reaction
  • User-friendly and touch-optimized
  • Simple and efficient operation
  • Fly-cut option for significantly shorter cutting times
  • Integrated CAD/CAM software for nesting
  • Intuitive, step-by-step support for machine operators
  • Fast height adjustment for a very high and consistent cutting quality
  • Integrated monitoring of peripheral devices such as laser sources and sensors
  • Support for direct production of DXF and G-Code; support for the rapid process of LXDS and NRP files generated by iCut
